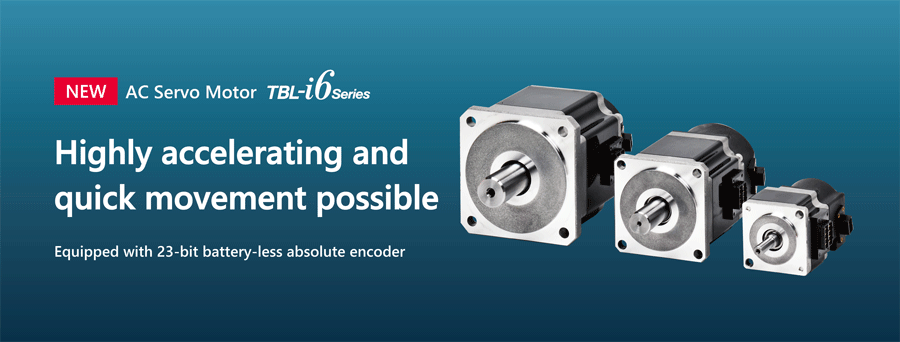

 NEW  【TBL-i6 Series】 AC Servo Motor Low inertia Type (Size □40 to 80mm)


Small-sized high torque servo motor series, with high acceleration and quick motion

  • Equipped with 23 bit battery-less absolute encoder
  • Small size (6% smaller than TBL-iⅡ series※) and high torque
    ※Compared with □80 mm 750 W motor
  • Low noise and low vibration
  • IP67

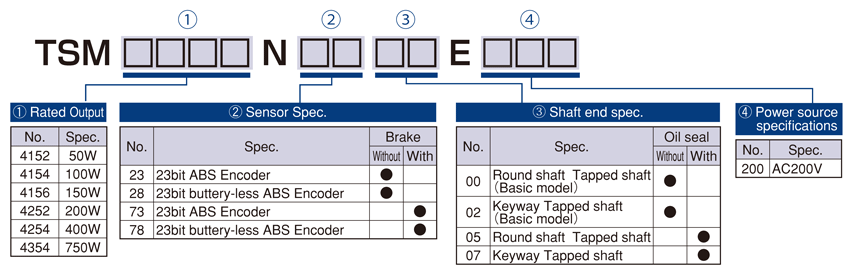

Model
Voltage
[V]


Mounting flange
[mm]


Model



Rated Output
[W]


Torque
[N・m]
Current
[Arms]
Speed
[min-1]
Rotor inertia
[×10-4 kg・m2]
Mass
[kg]
Rated Max Rated Max Rated Max Without brake With brake*1 Without brake With brake
AC200 □40 TSM4152 50 0.159 0.56 0.6 2.0 3,000 7,000*2 0.016 0.025 0.3 0.5
TSM4154 100 0.318 1.11 0.8 2.6 3,000 7,000*2 0.029 0.038 0.4 0.6
TSM4156 150 0.477 1.66 1.1 3.7 3,000 7,000*2 0.044 0.054 0.6 0.8
□60 TSM4252 200 0.64 2.24 1.5 5.3 3,000 7,000*2 0.11 0.20 0.8 1.2
TSM4254 400 1.27 4.46 3.0 11.2 3,000 7,000*2 0.21 0.30 1.1 1.5
□80 TSM4354 750 2.39 8.36 4.2 16.1 3,000 7,000*2 0.74 0.99 1.9 2.8

*1 Including inertia of brake.
*2 Combination with our driver.
*3 The current in the table is calculated value with basic model. It is increased in case of a motor with oil seal.

+

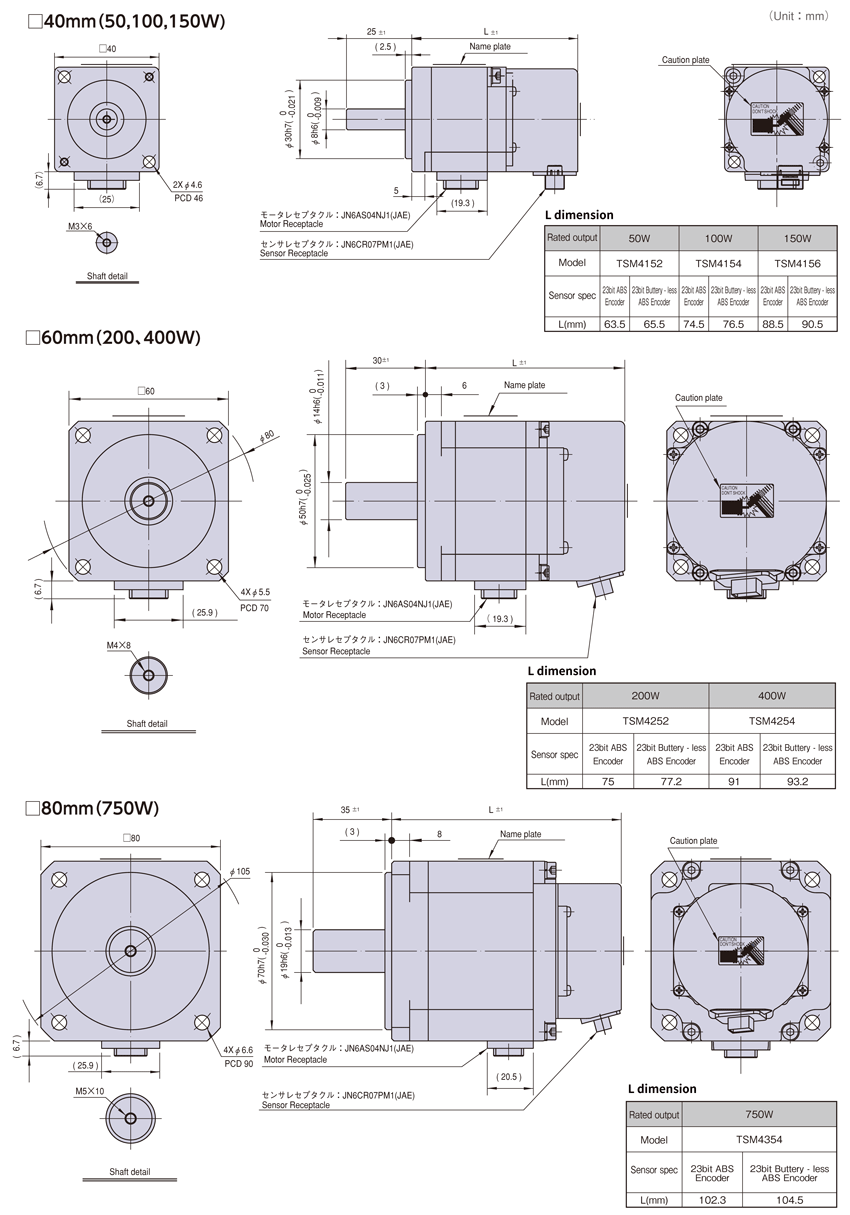

Outline ( Without brake & oil seal )
+

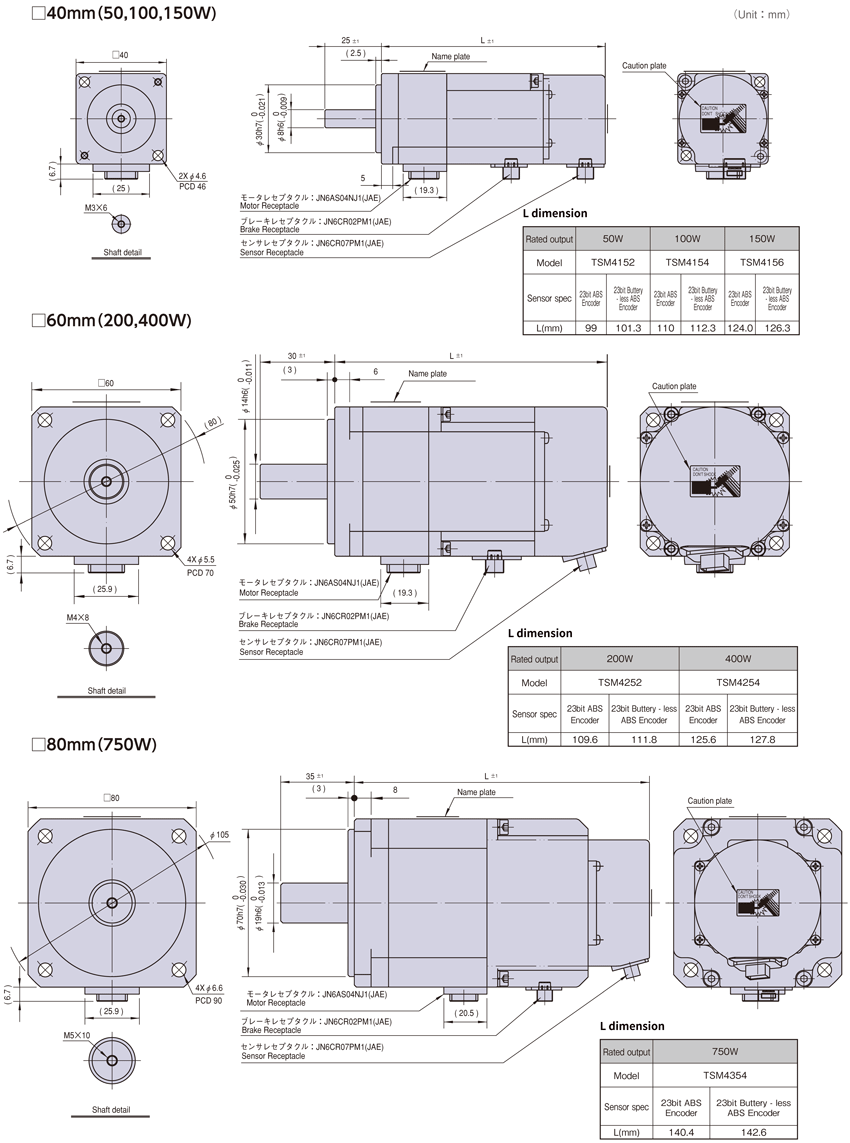

Outline ( With brake type , Without oil seal )<
+

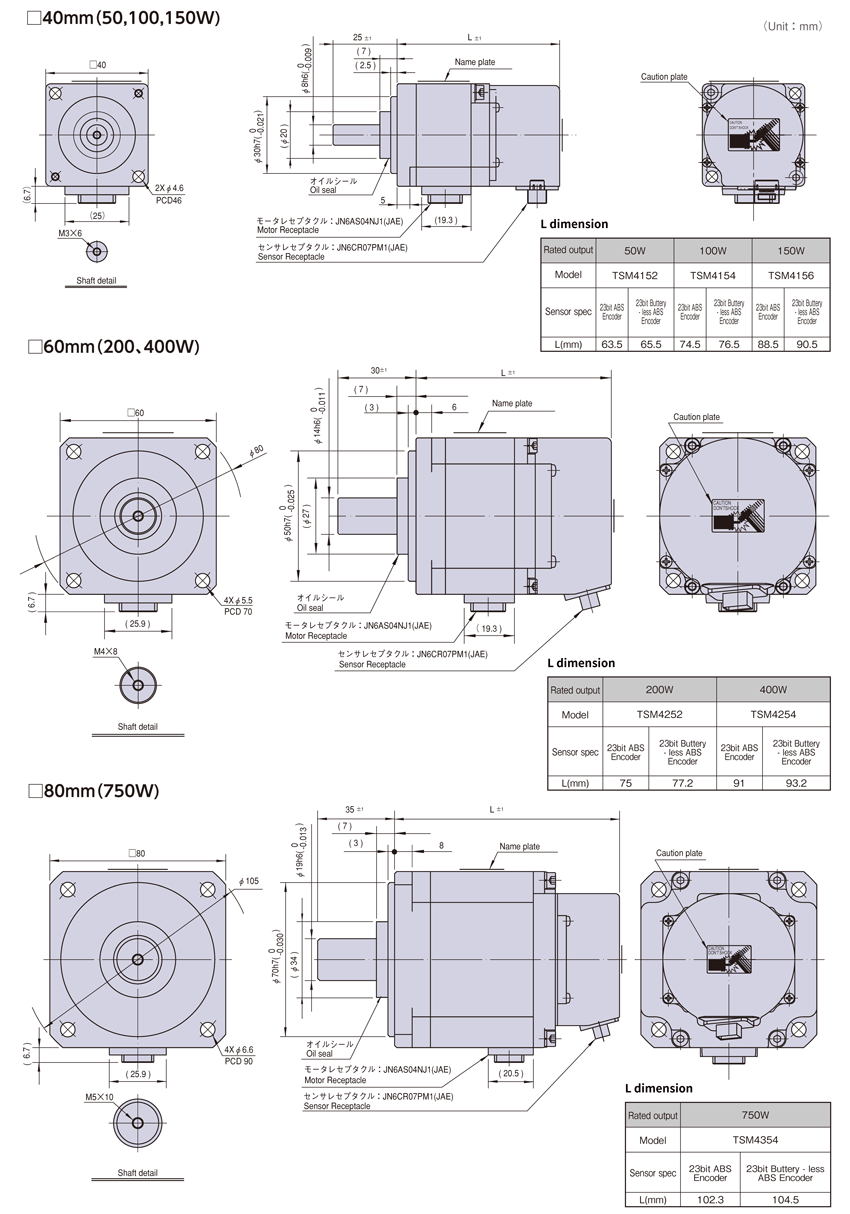

Outline ( Without brake type , with oil seal )
+

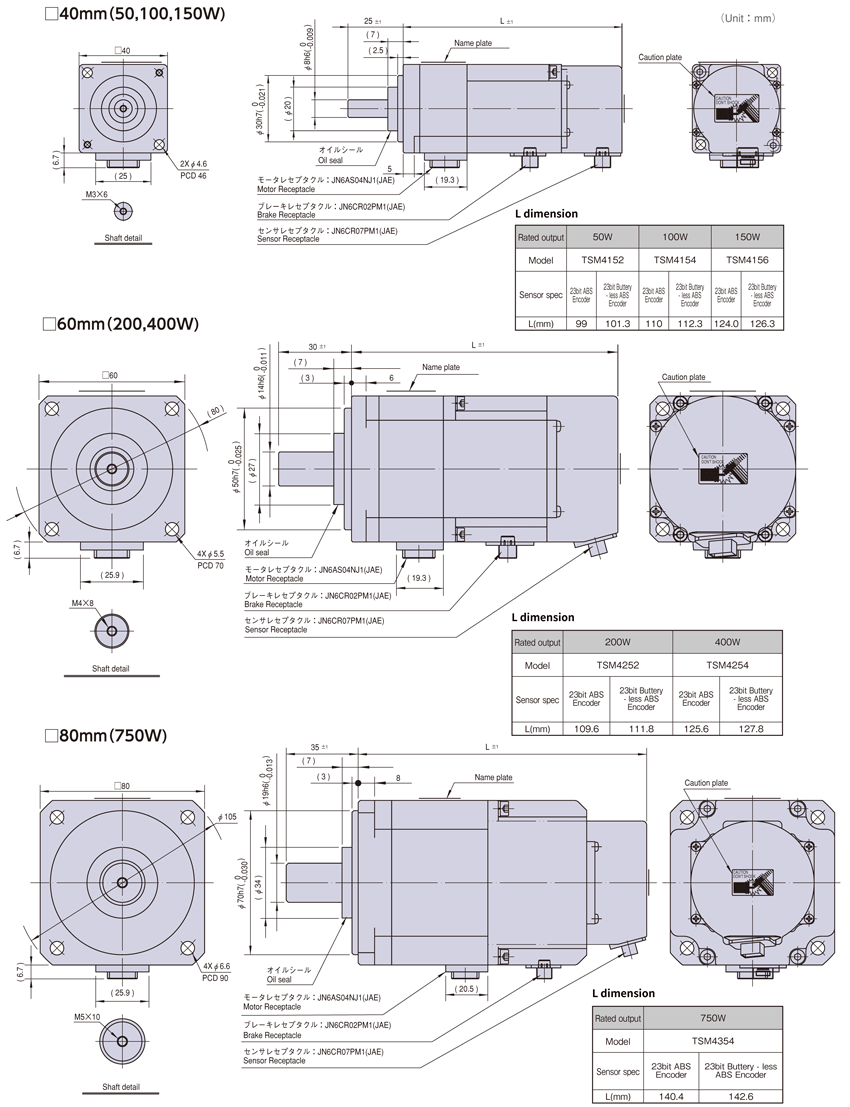

Outline ( With brake type , with oil seal )

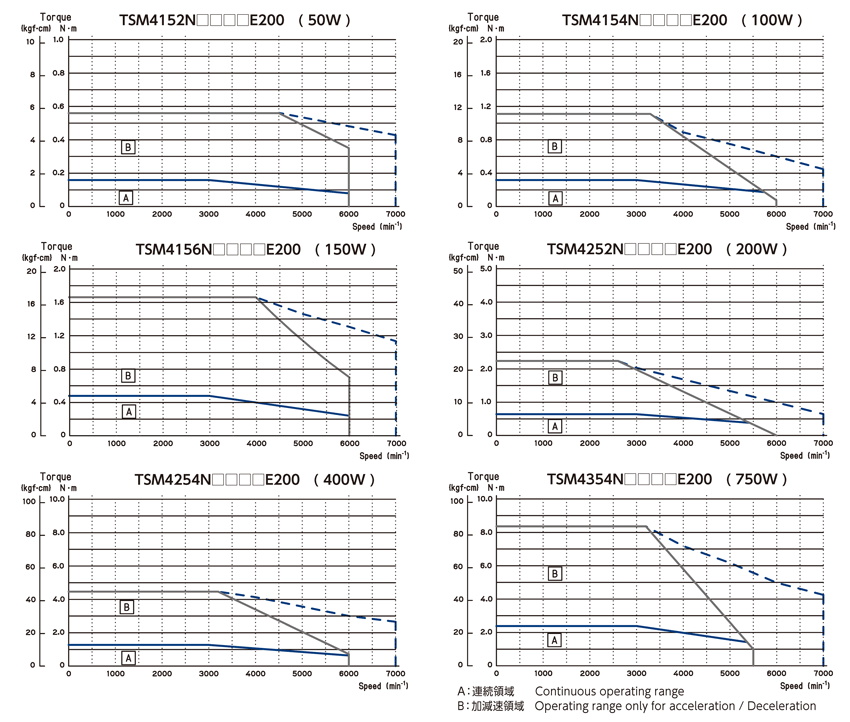

The following characteristics are based on the line to line voltoge(Rectified voltage) of AC200V to be applied to the motor, and may be limited by driving circuits. The characteristic is the case of TAD8811 series combination for our Driver.

NT

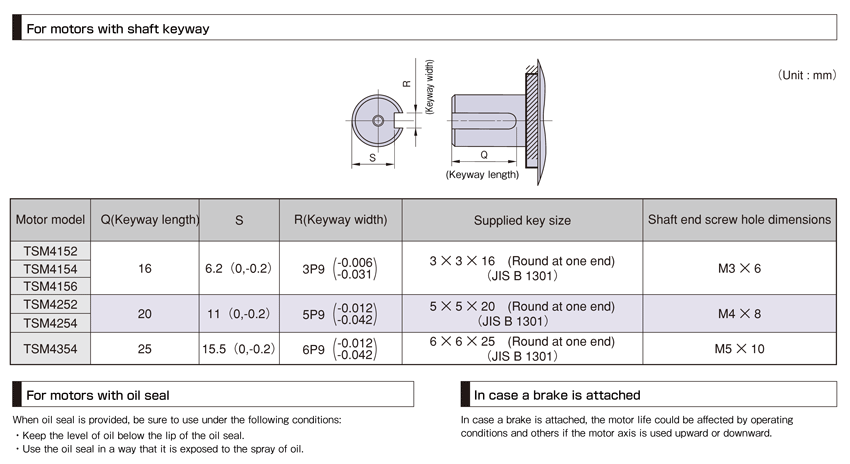

Shaft Specifications
