Positioning Systems (Enviroment Resistance)

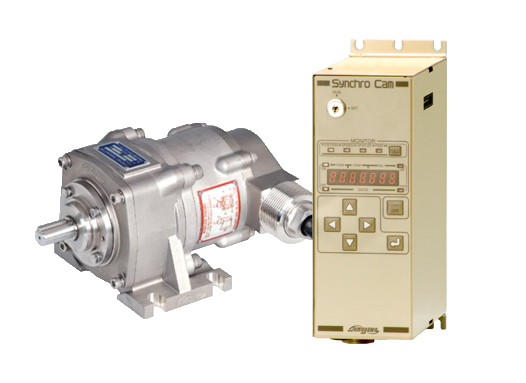

Positioning System(Sensor/Synchro)

We respond to your every need for motion control with high sensor technology and excellent system technology.
We provide you with highly accurate and reliable positioning systems supported by various types of indicators and transducers equipped with environmentally rigid synchro transmitters as a sensor.
An array of products is provided to fully meet all kinds of applications. They are capable of directly interfacing with upper systems such as programmable controllers, sequencers, etc. They are also applicable to the matching with, and the extension of existing systems.

Positioning Systems (Enviroment Resistance)

Functional List Sensor (Syncro)


Structure/
Productname
Single speed/Environment resistance
Synchro transmitter
Model No. TA4470 TA3470 TA4469
Function
/
Features
Mounting Base-mount type Flange type Base-mount type/Direct type
Built-in
sensor
TS2177N1
(BCX)
-
Others ・1X - BCX
・AC100/110Vrms 50/60Hz
・Oil-bath type
・Heat resistant up to +120℃
・IP code: IP67
・Gear ratio 1/1 to 1/16, 2/1
・1X - BCX
・AC100/110Vrms 50/60Hz
・Oil-bath type
・Heat resistant up to +120℃
・IP code: IP67
・Synchro is directly connected to the unit.

Structure/
Productname
Double speed/Environment resistance
Synchro transmitter
Widespread type
Synchro transmitter
Small size
Synchro transmitter
Model No. TA4471 TA3471 TA1664 TA1759
Function
/
Features
Mounting Base-mount type Flange type Base-mount type
Built-in
sensor
TS2178N1
(BCX)
TS563N3
(23BCX)and others
Others ・Double speed 1X - 64X
・AC26Vrms 400Hz
・Oil-bath type
・Heat resistant up to +120℃
・IP code: IP67
・Gear ratio 1/1 to 1/32
・It is possible to build with various Synchro sensor types.
・Widespread type
・Gear ratio 5/1 to 1/100
・Double speed type is also available.
・It is possible to build with various Synchro sensor types.
・Small size
・Gear ratio 5/1 to 1/50

Functional List Converter


Analog display
Digital display
Angle/Position output
Comparison output
Zero function
Preset function
Gain setting
Product name Synchro indicator
Model No. TA50 ∼ TA53, TA55
Function
/
Features
・Comes with a built-in synchro receiver (TR) Single pointer/Plural pointers
・Various sizes from 60 mm square to 150 mm square

Analog display
Digital display
Angle/Position output
Comparison output
Zero function
Preset function
Gain setting
Product name Synchrocam Synchrocam Synchrocam
Model No. TA4440 TA4441 TA4458
Function
/
Features
・Switching output: 16ch
・Position output: PB20bit or BCD 6 digit (Provided with strobe signals)
・7 segments LED 6-digit display
・Tracking speed: 300min-1(50/60Hz system), 1500min-1(400Hz)
・Switching output: 16ch
・Position output: PB20bit or BCD 6 digit (Provided with strobe signals)
・7 segments LED 6-digit display
・Tracking speed: 300min-1(50/60Hz system), 1500min-1(400Hz)
・Corresponding to CC-Link
・Positioning output
・Switching output: 16ch
・Position output: PB20bit or BCD 6 digit (Provided with strobe signals)
・Tracking speed: 300min-1(50/60Hz)
