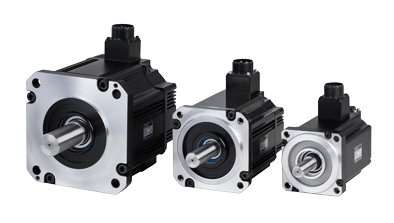

【TBL-iⅣ Series】 Large size AC Servo Motor (Size □100-180mm)

New servo motor with previous high accuracy and smaller size!

  • High resolution serial optical encoder(23bit available)
  • Small size (Top level in market)
  • Low cogging
【TBL-iⅣ Series】 Large size AC Servo Motor (Size □100-180mm)

Features

  • Small size (Top level in market)
  • High performance, high reliable sensors
    High resolution serial optical encoder (17bit and 23bit)
    High durability (temperature, shock and vibration) resolver (Smartsyn)
  • Low vibration and low cogging
  • Power supply : AC200V(Standard), conformable to AC400V as well
  • Improved maintenance because of easy assemble/disassemble sensor

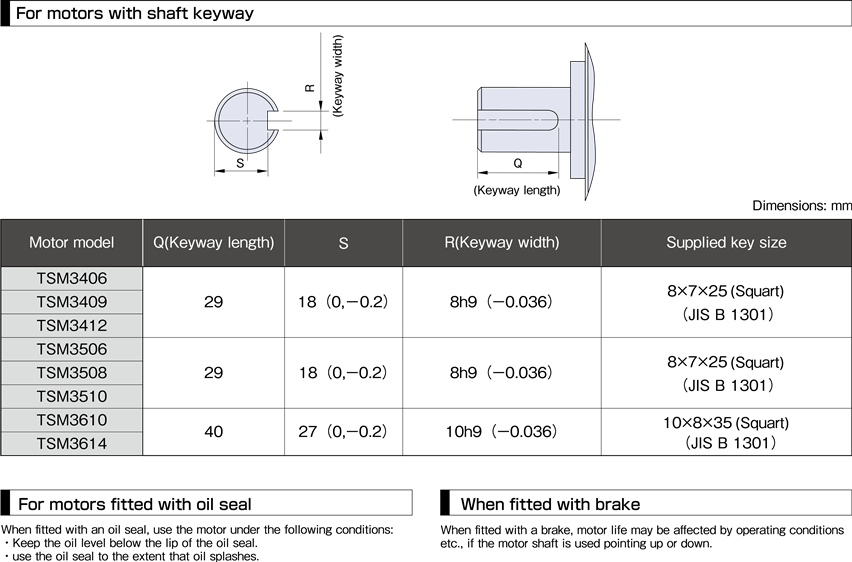

Specifications


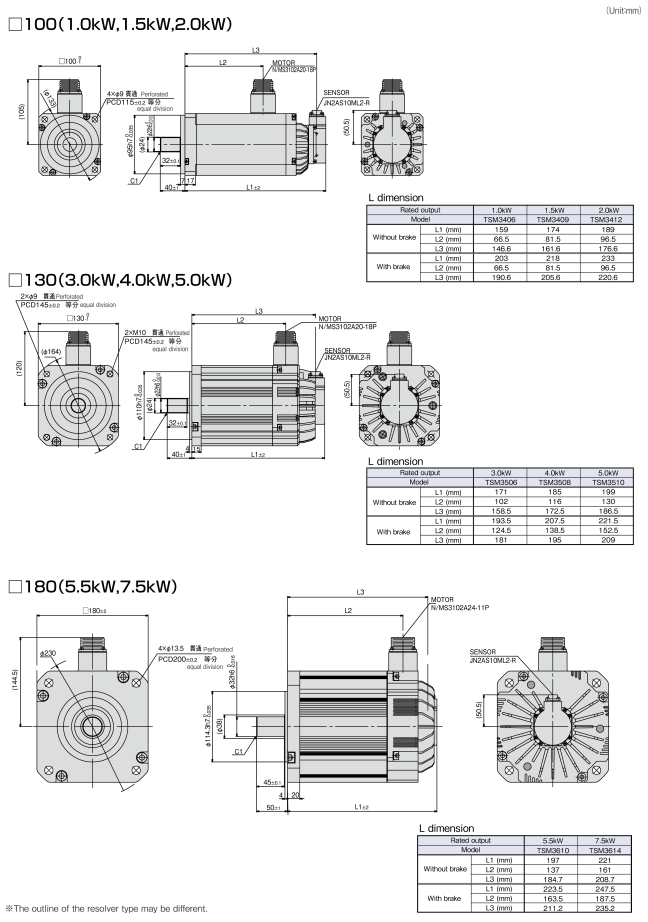

Mounting Flange [mm] □100
Model TSM3406 TSM3409 TSM3412
Output [kW] 1.0 1.5 2.0
Rated Torque [N・m] 3.2 4.8 6.4
Maximum Torque [N・m] 9.6 14.4 19.2
Voltage [V] 200 400 200 400 200 400
Rated Current [Arms]
7.4 3.7 10.4 5.2 13.5 7.4
Maximum Current [Arms]
21.3 10.6 30.6 15.5 40.5 22.2
Rated Rotation Speed [min-1] 3,000
Maximum Rotation Speed [min-1] 4,500
Rotor Inertia
[×10-4kg・m2]
Standard 2.05 2.89 3.72
With brake※ 2.82 3.62 4.46
Mass [kg] Standard 3.0 4.1 5.5
With brake 4.8 5.9 7.3

※excluding inertia of brake.


Mounting Flange [mm] □130
Model TSM3506 TSM3508 TSM3510
Output [kW] 3.0 4.0 5.0
Rated Torque [N・m] 9.5 12.7 15.9
Maximum Torque [N・m] 28.5 38.1 47.7
Voltage [V] 200 400 200 400 200 400
Rated Current [Arms]
19.3 9.9 25.0 12.4 31.3 16.7
Maximum Current [Arms]
58.7 31.6 76.8 39.9 96.8 54.1
Rated Rotation Speed [min-1] 3,000
Maximum Rotation Speed [min-1] 4,500
Rotor Inertia
[×10-4kg・m2]
Standard 7.46 9.82 12.3
With brake※ 9.99 12.34 14.74
Mass [kg] Standard 7.6 8.5 9.5
With brake 10.1 11.0 12.0

※excluding inertia of brake.


Mounting Flange [mm] □180
Model TSM3610 TSM3614
Output [kW] 5.5 7.5
Rated Torque [N・m] 26.2 35.8
Maximum Torque [N・m] 65.5 89.5
Voltage [V] 200 400 200 400
Rated Current [Arms]
34.3 18.4 46.4 23.2
Maximum Current [Arms]
88.0 45.1 119.8 57.0
Rated Rotation Speed [min-1] 2,000
Maximum Rotation Speed [min-1] 3,000
Rotor Inertia
[×10-4kg・m2]
Standard 40.3 56.4
With brake※ 47.9 63.6
Mass [kg] Standard 16.8 20.6
With brake 22.8 26.6

※excluding inertia of brake.
