Trackball

Pointing device provides smooth & seamless operation


  • Smooth operability
  • Ball rolls differently for each size, ensuring smooth ball motion.
    Seamless and smooth operation.

  • Seamless movement regardless of narrowness
  • Seamless movement just as the ball rolls, even in a compact device.

  • Many sizes
  • Ball sizes from 1 to 3 inches (four sizes), offering the perfect size for your device.
    TA4714

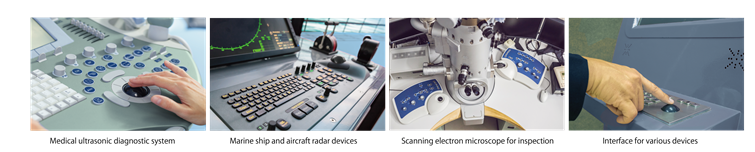

    Trackball Applications

    Trackballs are used as the pointing means in various devices. Smooth sequential action in a limited space.

    Specification


    Size 1 inch 1.4 inch 1.4 inch
    Model TAS4721N1113 TAS4701N1000 TAS3414N0012
    Features ・Compact & lightweight
    ・Removable ball
    ・Output via connector
    ・Uses photo-sensors
    ・Removable ball
    ・Output via connector
    ・Uses photo-sensors
    ・Output via connector
    ・Uses photo-sensors
    Supply Voltage DC5 V ± 5 %
    100 mA Max.
    DC5 V ± 5  %
    100 mA Max.
    ( It does not fit lighted ball model )
    DC5 V ± 5 %
    100 mA Max.
    Output Output axes Two axes(X,Y) Two axes(X,Y) Two axes(X,Y)
    Output Wave form Pulse Pulse Pulse
    Number of pulse
    (One rotation of the ball)
    345 ± 10 % 215 ± 10 % 215 ± 10 %
    Output form CMOS Output CMOS Output CMOS Output
    Color Ball Ivory White Black Black
    Cover Black Black Black
    Case Clear Black Black
    Ball Driving Force
    (at ball surface)
    0.196 N(20 gf) Max.
    0.196 N(20 gf) Max.
    0.294 N(30 gf) Max.
    Operation Temp. 0 to + 45 ℃
    (No condensation)
    0 to + 45 ℃
    (No condensation)
    0 to + 45 ℃
    (No condensation)
    Humidity 90 %RH Max. 90 %RH Max. 90 %RH Max.
     Mass Approx. 0.1 kg Approx. 0.1 kg Approx. 0.1 kg


    Size 2 inch 2 inch 3 inch
    Model TAS3420N0022 TAS4723N2000 TA 4533N0023
    Features ・Output via connector
    ・Uses photo-sensors
    ・Laser sensor type
    ・Operable ring parts
    (push, pull, turn)
    ・Large size
    ・Output via connector
    ・Uses photo-sensors
    Supply Voltage DC5 V ± 5 %
    100 mA Max.
    DC5 V
    (4.25 to 5.25 V)
    100 mA Max.
    DC5 V ± 5 %
    300 mA Max.
    Output Output axes Two axes(X,Y) Two axes(X,Y) Two axes(X,Y)
    Output Wave form Square wave Ball part : Square wave, CMOS Level
    Ring part : UART, CMOS level
    Square wave
    Number of pulse
    (One rotation of the ball)
     170 ± 10 % <Resolutions>
    Ball part :170 count ±10 % (One rotation of the ball)
    Ring part : X, Y, Z axes and H 256 level
    (-128 to +127)
    300 ± 10 %
    Output form CMOS Output TTL Output
    Color Ball Black Black
    (Ball/Key Top/Outer Ring/Cover/Case)
    Black
    Cover Black Black
    Case Black Black
    Ball Driving Force
    (at ball surface)
    0.294 N(30 gf) Max.
    0.294 N(30 gf) Max.
    0.245 N(25 gf) Max.
    Operation Temp. 0 to +45 ℃
    (No condensation)
    0 to +45 ℃
    (No condensation)
    0 to +45 ℃
    (No condensation)
    Humidity 95 %RH Max. 95 %RH Max. 95 %RH Max.
    Mass Approx. 0.4 kg Approx. 0.2kg  Approx. 0.8 kg
