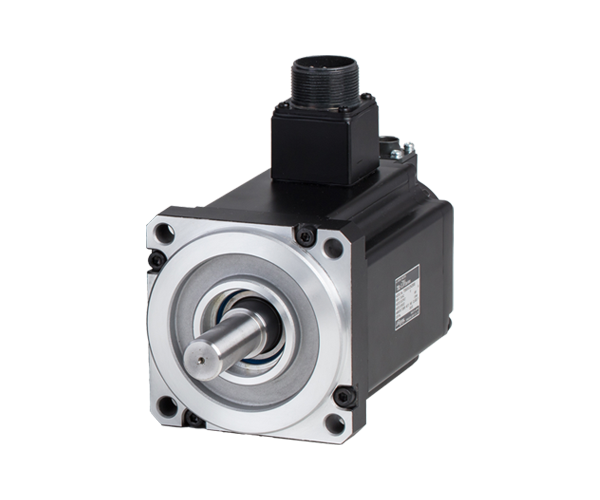

TBL-iIV ｜ Large Size AC Servo Motor TSM3412 N2307 E430
Specifications
- Series Name
- TBL-iIV
- Model No.
- TSM3412 N2307 E430
- Rated Output ［ W ］
- 2,000
- Mounting Flange ［ mm ］
- 100
- Rated Torque ［ N・m ］
- 6.37
- Rated Speed ［ min-1 ］
- 3,000
- Max. Torque ［ N・m ］
- 19.2
- Max. Speed ［ min-1 ］
- 4,500
- Motor Length ［ mm ］
- 189
- Power Source ［ V ］
- AC 400
- Brake
- Without
- Sensor
- Absolute（Multi-turn） 23 bit
- Gear Ratio
- Without
- Rotor Inertia ［ kg・m2×10-4 ］
- 3.72
- Shaft End
- Keyway
- Oil Seal
- With
- Protection
- IP65
- Number of Poles
- 10
- Rated Current ［ A rms ］
- 7.4
- Max. Current ［ A rms ］
- 22.2 ※3
- Operating Temp. Range ［ ℃ ］
- 0～+40
- Storage Temp. Range ［ ℃ ］
- -10～+85
- Mass ［ kg ］
- 5.5
※1 :【TBL-i6】【TBL-i6α】Combination with our driver.
※2 :【TBL-iIV With Brake Type】【TBL-i6α With Brake type】Including inertia of brake.
※3 :【TBL-iIV Large Size Type】 Some combination are non-compatible.
※4 :【TBL-iII 60 mm sq. AC100 V Type】When combined with TAD8811 driver, the maximum output is limited.
※5 :【TBL-i mini 14.5 mm sq. Type】Incremental Encoder 4,096 C/T type is limited to 3,000 in the limit of the response frequency of the sensor.

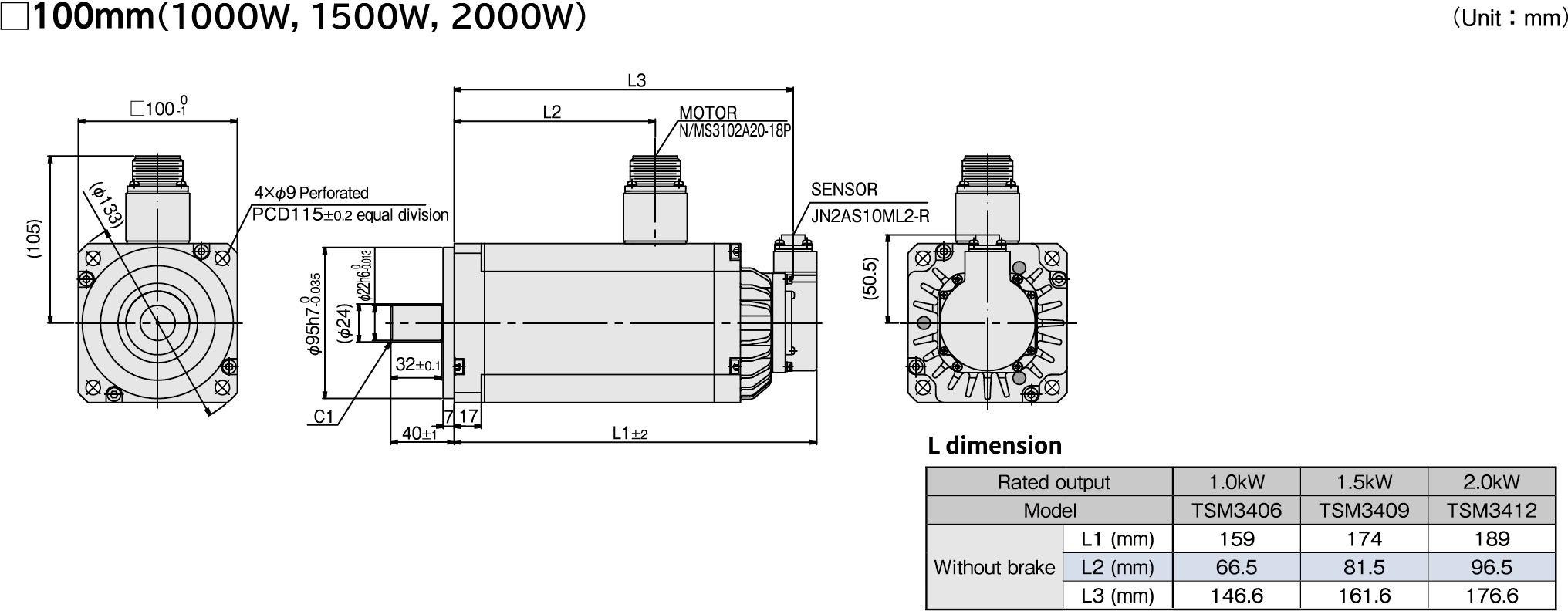

Outline
